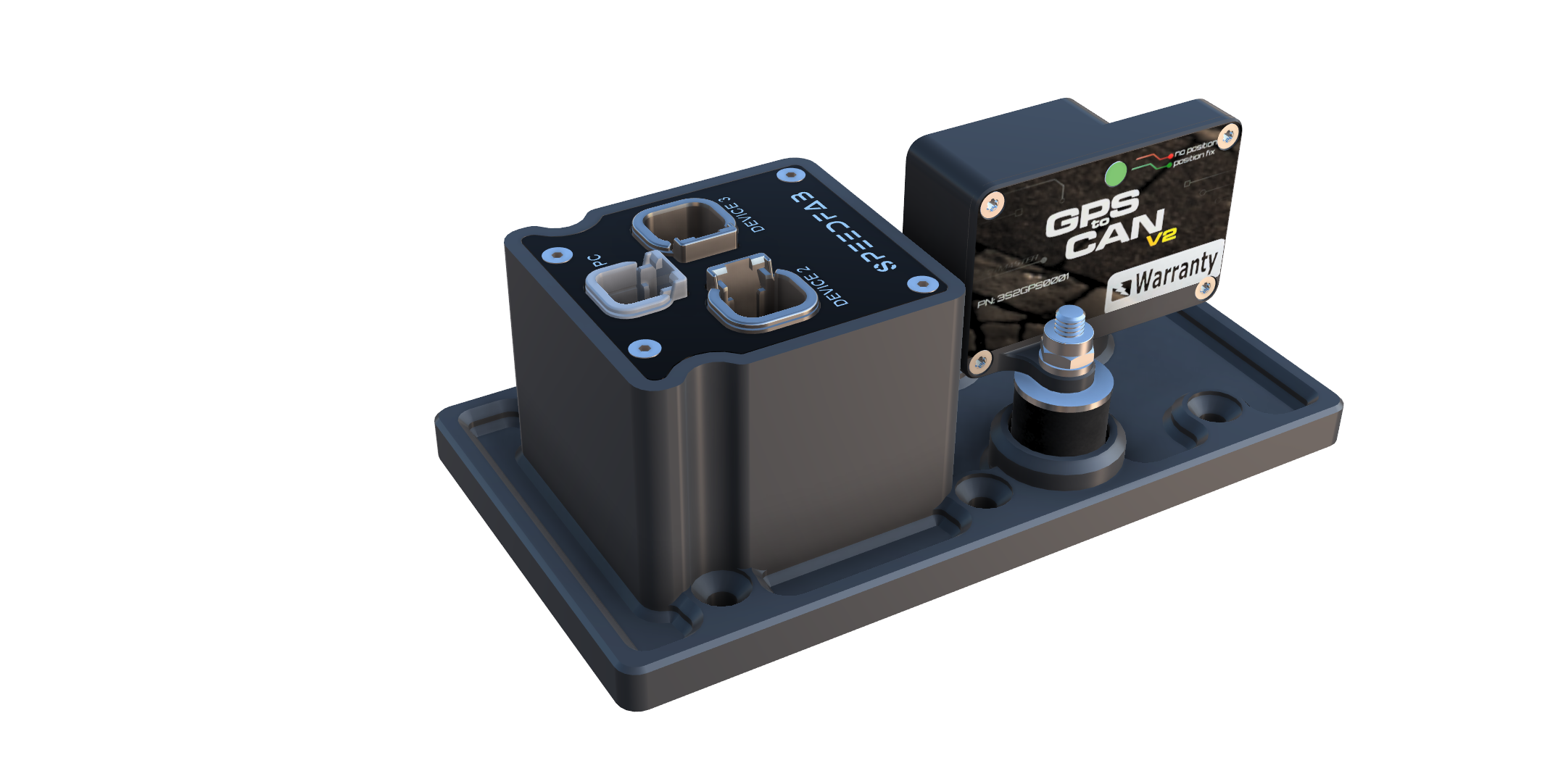

Used to integrate the ECUMASTER canGPS V2.

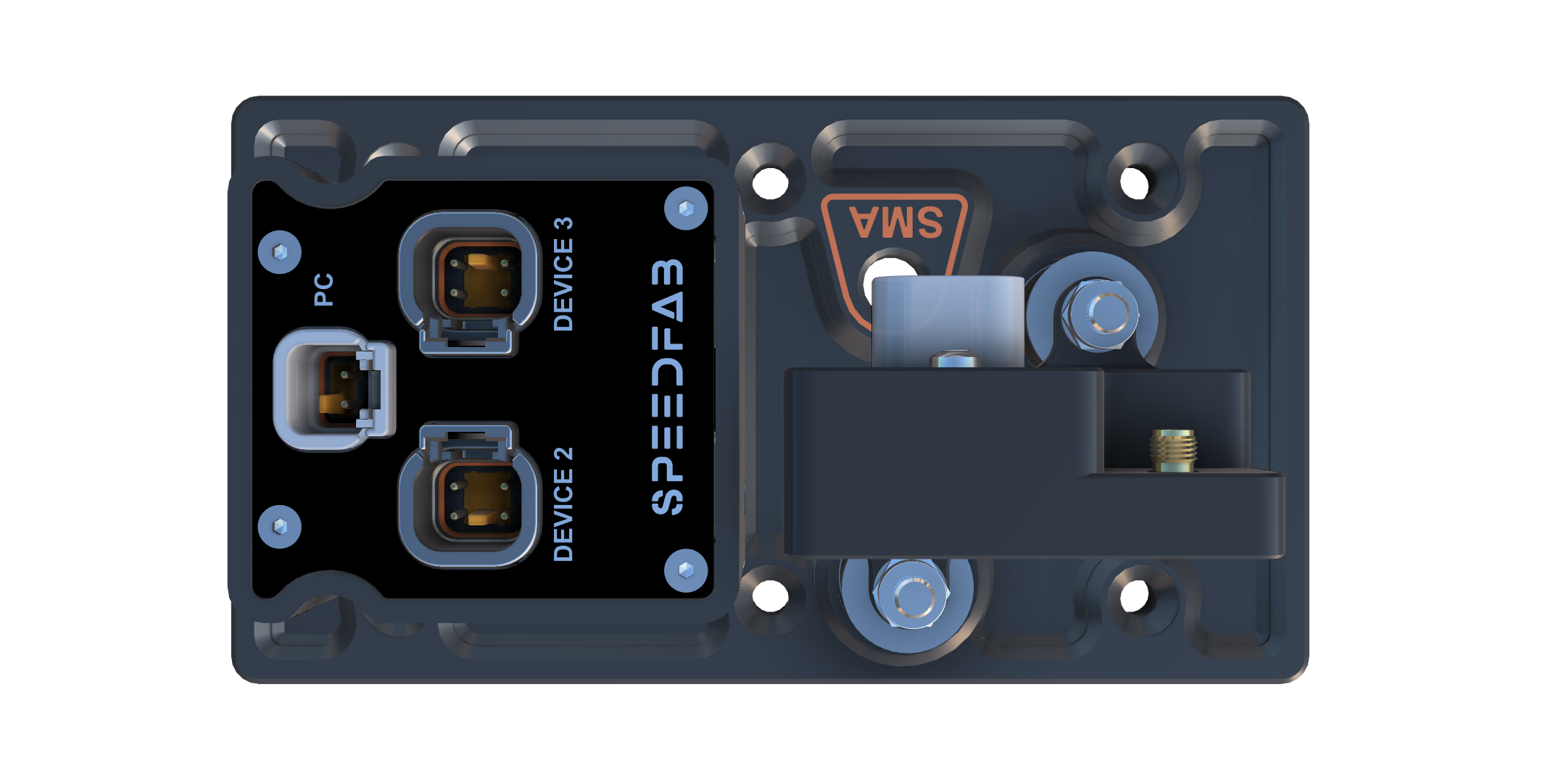

This combination CAN-BUS hub and mounting bracket install in the vehicle in minutes with ease (as long as you hold your tongue right).
For the customer that would like the install to be reversible we have you covered - the only trace of install is the fully built race motor, and two tidily enlarged holes in the center console floor - under the removable rubber mat.
The holes run the GPS antenna away from the unit and allow the CAN-BUS connection from the dash to be made (including ignition switched 12VDC power)

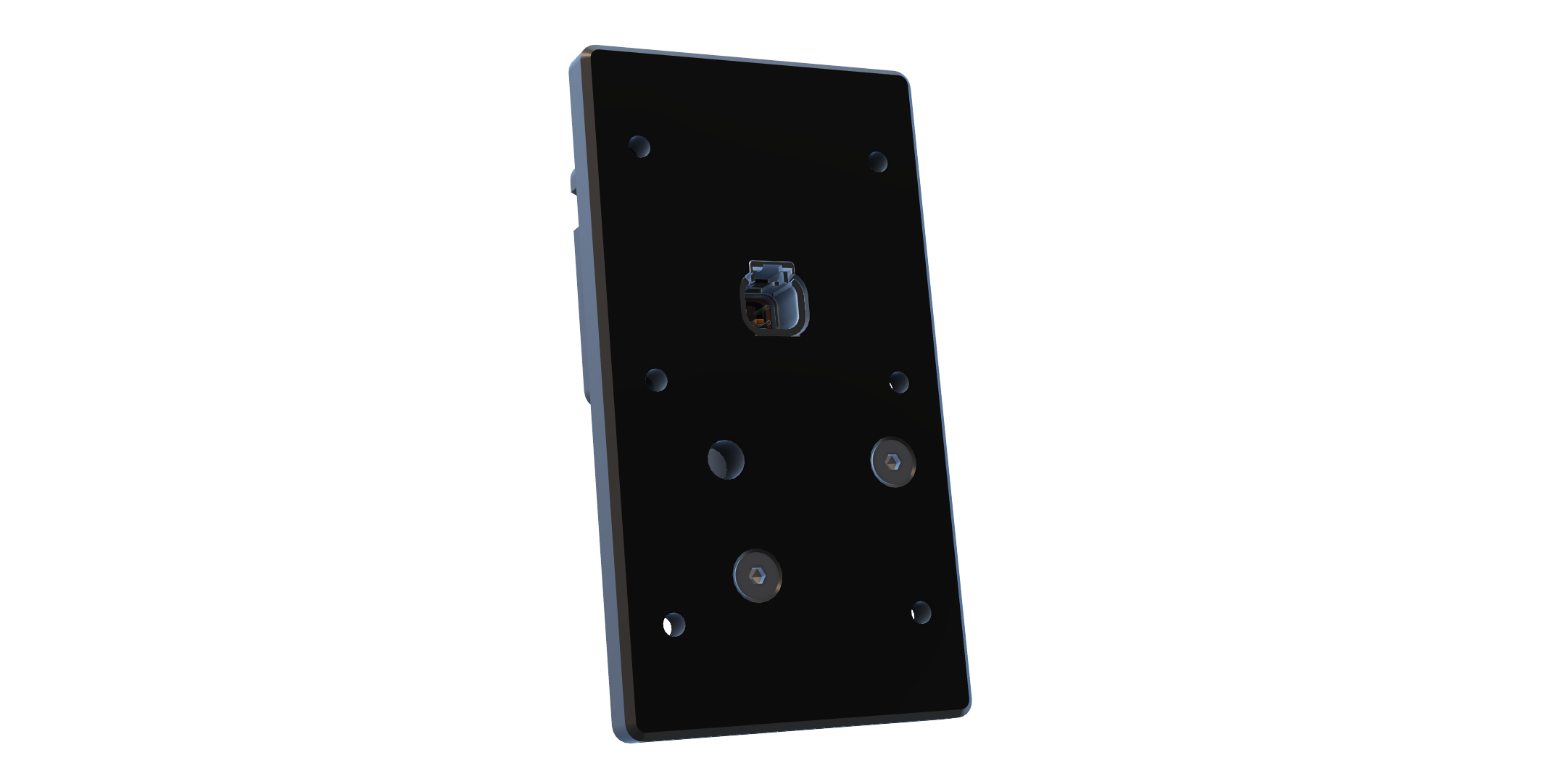

The mounting holes for this are preexisting in the 8V RS3 - to install the nut plate on the underside of the console, follow the simple instructions and the plate will slot into place with its convenient handle for grip whilst fastening from the top side.
As with all SPEEDFAB products top quality parts are used.
M22759 Tefzel wire.
Genuine Deutsch DT and DTM connectors with closed barrel crimps.
Supplied with 120 ohm resistor for Bus termination pre-wired into GPS plug.
Rigorous testing during assembly.
